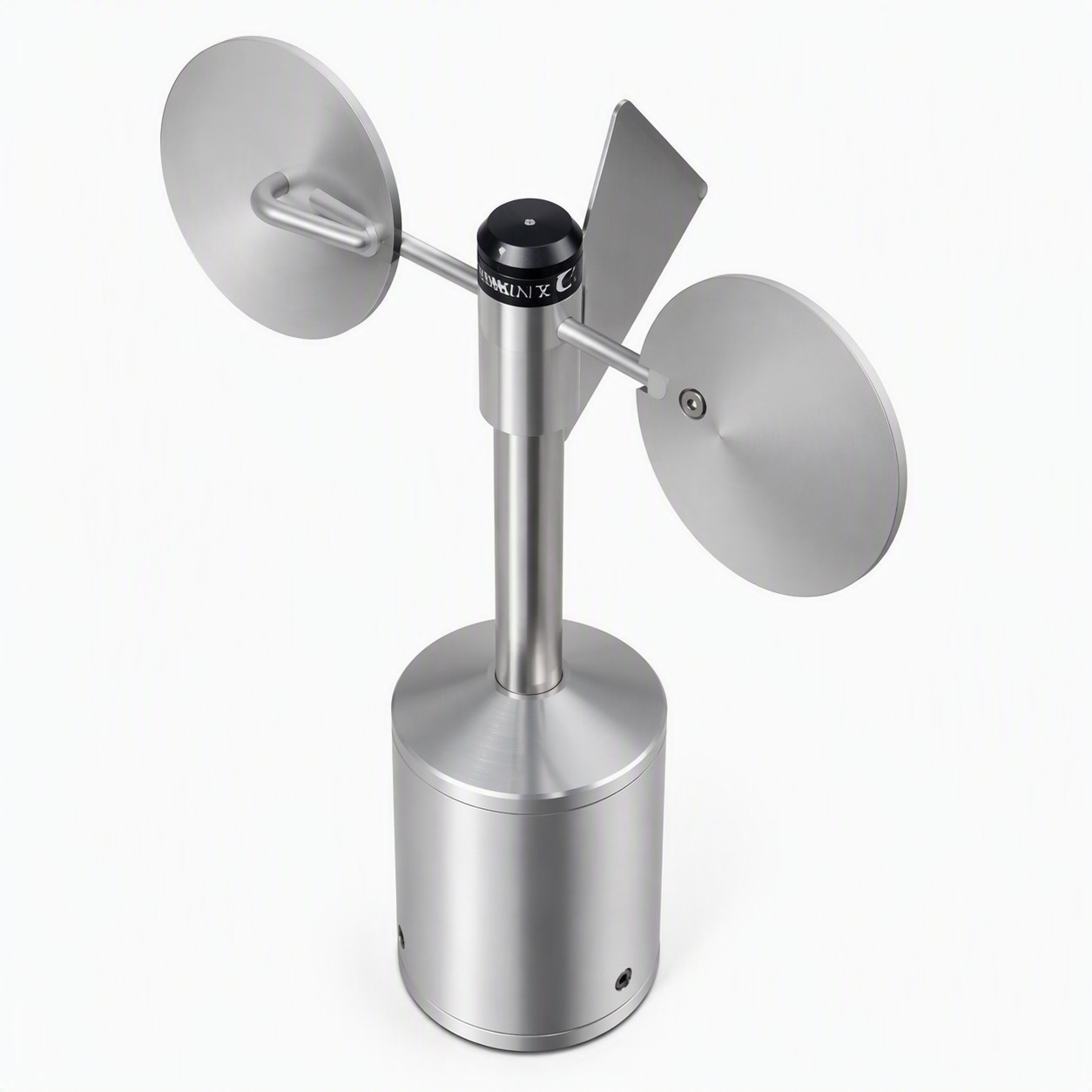

Anemometro Vector First Class - immagine 1
Click to enlarge

Anemometro Vector First Class

COD: AMM-S14100 Categoria:
Marchio Vector Instruments

Descrizione prodotto

L’anemometro Vector First Class è un trasmettitore optoelettronico della velocità del vento, classificato secondo lo standard IEC

Il rotore è a tre tazze, a bassa inerzia. La ruota viene scansionata optoelettronicamente e l’uscita è digitale.

Caratteristiche:
– valore  “Low Power”, segnale di uscita ad alta frequenza
– Intervallo 0,2 … 75 m / s
– Risoluzione <0,5 m / s
– Bassa potenza, solo uscita a impulsi
– Consuma 1 mA durante il funzionamento dalla batteria del logger.

Documentazione

Specifiche tecniche

First Class Anemometers for Wind Turbine Testing and Wind Farm Site Assessment (Wind Assessment):
Type Output Signal Type/Range Resolution Power Supply Required Additional Features Typical Applications
A100L2 0..1500Hz = 0..150Knots (10Hz per Knot nominal) 0.05m 6.5 to 28V DC powered (@1.5mA typical) First Class, Low power, Analog/Voltage Output: 0..2.5v = 0..150Knots nominal [for higher output voltage/signal, see A100L2/E & A100L2/H models below] Datalogger/AWS/WindAssessment
A100LK 0..1500Hz = 0..150Knots (10Hz per Knot nominal) 0.05m 4.75 to 28V DC powered (@1mA typical) First Class, Low power Datalogger/AWS/WindAssessment
A100LM 0..750Hz = 0..75m/s (10Hz per m/s nominal) 0.1m 4.75 to 28V DC powered (@1mA typical) First Class, Low power Datalogger/AWS/WindAssessment
A100AC 2 pulses per revolution (1.554Hz per m/s nominal) 0.625m No power required First Class, low-level AC output signal, optimal cosine response Datalogger/AWS/WindAssessment
A100R/K 1 pulse per revolution (1.287m wind-run = 0.777Hz per m/s nominal) 1.25m No power required First Class, reed-switch transducer, optimal cosine response Datalogger/AWS/WindAssessment
A100L2/E analog/voltage signal 0..5V = 0..50Knots (nominal, overranges to ~8.8V at ~98kts) 0.05m 10 to 28V DC powered Low power, Analog/Voltage Output: 0..5v = 0..50Knots nominal (NO pulse/frequency output signal) Also provides a stable/reference voltage to energiise a W200P windvane. Datalogger/AWS/PLC/Industrial
A100L2/H analog/voltage signal 0..5V = 0..50m/s (nominal, overranges to ~7.5V at ~76m/s) 0.1m 10 to 28V DC powered Low power, Analog/Voltage Output: 0..5v = 0..50m/s nominal (NO pulse/frequency output signal) Also provides a stable/reference voltage to energiise a W200P windvane. Datalogger/AWS/PLC/Industrial
Other Anemometers:
Type Output Signal Type/Range Resolution Power Supply Required Additional Features Typical Applications
A100K 0..1500Hz = 0..150Knots (10Hz per Knot nominal) 0.05m 10 to 30V DC powered (@35mA max) Anti-Surge Industrial/control/PLC
A100M 0..750Hz = 0..75m/s (10Hz per m/s nominal) 0.1m 10 to 30V DC powered (@35mA max) Anti-Surge Industrial/control/PLC
A100S 1 pulse per revolution (1.25m wind-run = 0.8Hz per m/s nominal) 1.25m 10 to 30V DC powered (@35mA max) Anti-Surge Industrial/control/PLC
A100R 1 pulse per revolution (1.25m wind-run = 0.8Hz per m/s nominal) 1.25m No power required reed switch transducer Datalogger/AWS/PLC
RETIRED Anemometers: - these models are discontinued, and are only available as spares for existing installations.
Type Output Signal Type/Range Resolution Power Supply Required Additional Features Typical Applications
A100 Porton analog/voltage signal 0..10V = 0..100Knots (nominal)DISCONTINUED: For alternative see: A100L2/E 0.05m 10 to 30V DC powered High-Level Analog/Voltage Output: 0..10v = 0..100Knots nominal (NO pulse/frequency output signal) Datalogger/AWS/PLC/Industrial
A100H Porton analog/voltage signal 0..7.5V = 0..75m/s (nominal)DISCONTINUED: For alternative see: A100L2/H 0.1m 10 to 30V DC powered High-Level Analog/Voltage Output: 0..7.5v = 0..75m/s nominal (NO pulse/frequency output signal) Datalogger/AWS/PLC/Industrial
