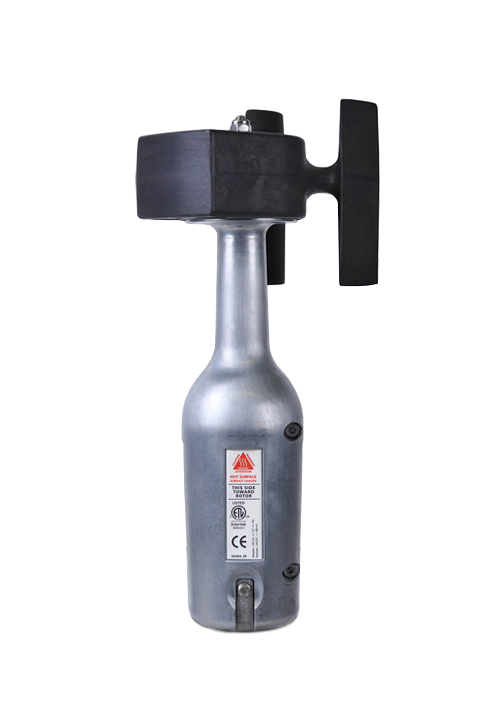

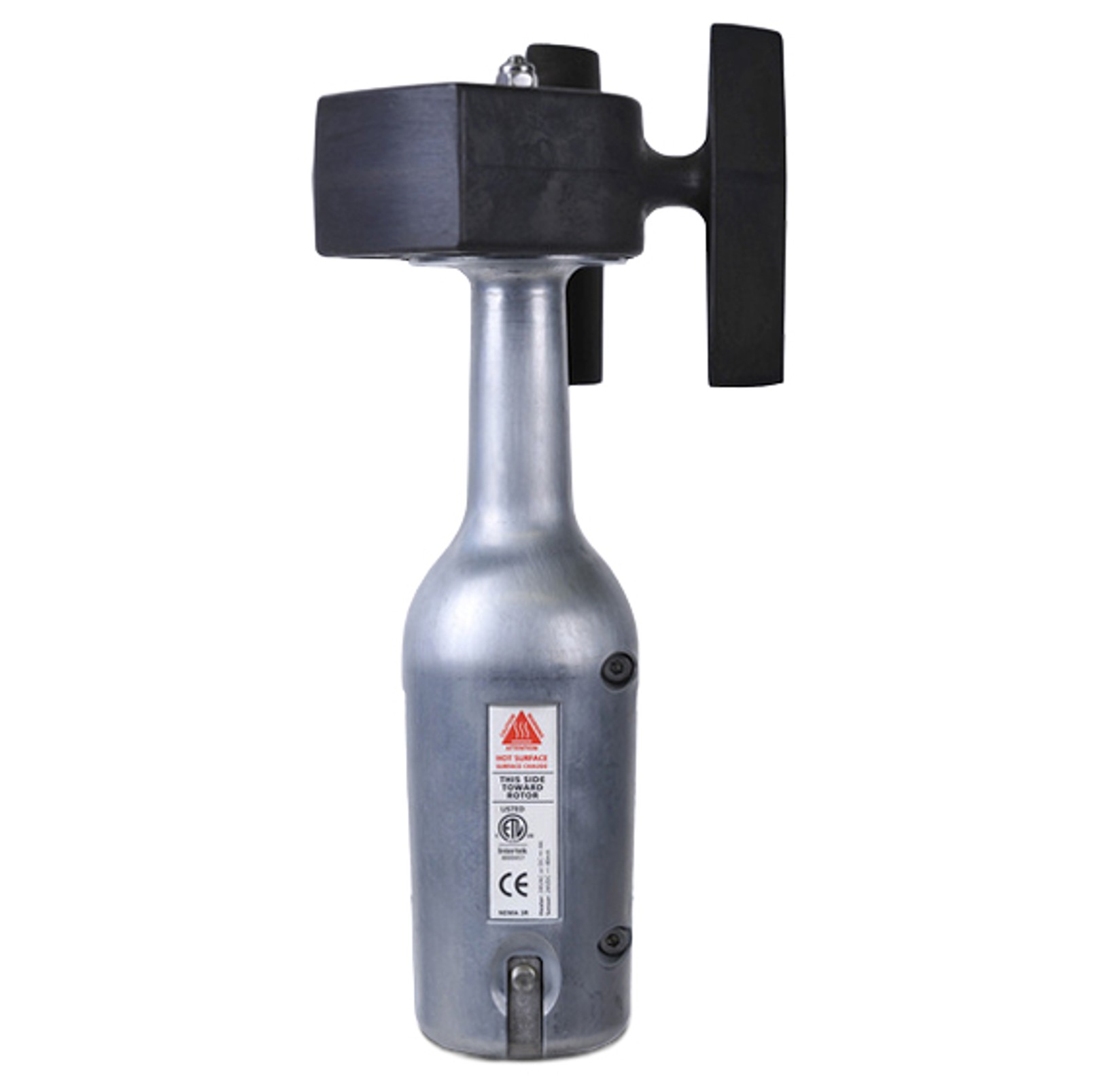

Banderuola NRG Hybrid XT

COD: NRG-18016 Categoria: Sensori per WTG e campagne anemometriche

Marchio

Descrizione prodotto

Il sensore di direzione NRG Hybrid XT, come tutte le banderuole ibride riscaldate, è utilizzato diffusamente nel controllo delle turbine eoliche in ambienti a clima rigido. Fornisce un riscaldamento costante per migliorare l’operatività in climi freddi e diminuire i fermi macchina delle turbine.

Il disegno modulare e la rapidità di installazione riducono i costi di manutenzione e di installazione.

Dotato di un range libero di rotazione da 0° a 360°, è compatibile con gli ingressi digitali di tutti i controllori e PLC delle turbine.

Documentazione

Specifiche tecniche

	HYBRID XT VANE (#4715)	4-20MA OUTPUT (#5762)	PUSH-PULL OUTPUT (#7894)	PUSH-PULL OUTPUT (#9363)	4-20MA OUTPUT (#9362)
Description
Sensor type	Heated Wind Turbine Yaw Control Vane	Heated Wind Turbine Yaw Control Vane	Heated Wind Turbine Yaw Control Vane	Heated Wind Turbine Yaw Control Vane	Heated Wind Turbine Yaw Control Vane
Applications	Wind Turbine Control	Wind Turbine Control	Wind Turbine Control	Wind Turbine Control	Wind Turbine Control
Sensor range	0° to 360°, free rotation Guaranteed survivability to 90 m/s (200 mph)	0° to 360°, free rotation Guaranteed survivability to 90 m/s (200 mph)	0° to 360°, free rotation Guaranteed survivability to 90 m/s (200 mph)	0° to 360°, free rotation Guaranteed survivability to 90 m/s (200 mph)	0° to 360°, free rotation Guaranteed survivability to 90 m/s (200 mph)
Instrument compatibility	Digital inputs of turbine controllers PLCs	4-20 mA current loop inputs of wind turbine controllers PLCs Other instruments with 4-20mA inputs	Digital inputs of turbine controllers PLCs	Digital inputs of turbine controllers PLCs	4-20 mA current loop inputs of wind turbine controllers PLCs Other instruments with 4-20mA inputs
Certifications	Conforms to UL STD 61010-1 Conforms CSA STD C22.2 No. 61010-1 CE Marked	CE Marked	CE Marked	CE Marked	CE Marked
Output signal
Signal type	High level square wave frequency (see manual for details) Amplitude equals supply voltage Other formats from optional personality module	Current loop, 4 to 20mA, sourced by the sensor	Push/Pull (compatible with NPN or PNP inputs)	Push/Pull (compatible with NPN or PNP inputs)	Current loop, 4 to 20mA, sourced by the sensor
Transfer function	0° = 100 Hz to 359° = 459 Hz (280 Hz is center for turbine control applications) 1° per Hz	4 to 20 mA corresponds to 0° to 360° in clockwise (CW) direction For turbine control, orient so that 180° corresponds to on-the-wind	Two yaw-error signals VR (left / right) VL90 (front / back) see manual for details	Two yaw-error signals VR (left / right) VL90 (front / back) see manual for details	4 to 20 mA corresponds to 0° to 360° in counter clockwise (CCW) direction For turbine control, orient so that 180° corresponds to on-the-wind
Accuracy	Within +/- 2° of transfer function Linear to +/-1°	+/- 1.8° (0.5%) Factory calibrated at 180° (on the wind)	+/-1.8° (0.5%) factory calibrated at 180° (on the wind)	+/-1.8° (0.5%) factory calibrated at 180° (on the wind)	+/- 1.8° (0.5%) Factory calibrated at 180° (on the wind)
Dead band	None	None	None	None	None
Recommended load resistance	1200 Ω minimum	50 Ω to 1000 Ω (depending on power supply)	1200 Ω minimum Pull-up resistors not required	1200 Ω minimum Pull-up resistors not required	50 Ω to 1000 Ω (depending on power supply)
Output signal range	100 Hz to 459 Hz 0 Hz output indicates fault	4 to 20 mA < 4 mA indicates fault	n/a	n/a	4 to 20 mA < 4 mA indicates fault
Resolution	10-bit (<1°)	0.4 degrees, guaranteed monotonic	10-bit (<1°)	10-bit (<1°)	0.4 degrees, guaranteed monotonic
Response characteristics
Threshold	< 2.4 m/s (< 5.4 mph)	<2.4 m/s (<5.4 mph)	< 2.4 m/s (< 5.4 mph)	< 2.4 m/s (< 5.4 mph)	< 2.4 m/s (< 5.4 mph)
Power requirements
Supply voltage	8 to 24 V DC	11 to 24 V DC	8 to 24 V DC	8 to 24 V DC	11 to 24 V DC
Supply current	40 mA typical 51 mA max. (not including heater)	20 mA typical, plus output current.	40 mA typical 51 mA max. (not including heater)	40 mA typical 51 mA max. (not including heater)	20 mA typical, plus output current.
Heater supply voltage	24 V, AC or DC	24V, AC or DC	24 V, AC or DC	24 V, AC or DC	24V, AC or DC
Heater supply current	Self regulating 1 to 4 A, thermal load dependant Cold start inrush current: 9 A peak Inrush drops below 4 A within 30 secs.	Self regulating 1 to 4 A, thermal load dependant Cold start inrush current: 9 A peak Inrush drops below 4 A within 30 secs.	Self regulating 1 to 4 A, thermal load dependant Cold start inrush current: 9 A peak Inrush drops below 4 A within 30 secs.	Self regulating 1 to 4 A, thermal load dependant Cold start inrush current: 9 A peak Inrush drops below 4 A within 30 secs.	Self regulating 1 to 4 A, thermal load dependant Cold start inrush current: 9 A peak Inrush drops below 4 A within 30 secs.
Installation
Mounting	Sensor housing compatible with: 25 mm pipe per BS1387, or 32 mm tube, or 1 inch IPS pipe 1-1/4" Tube Quick disconnect allows for easy mounting or dismounting captive M6 clamp bolt, nut, and connector	Sensor housing compatible with: 25 mm pipe per BS1387, or 32 mm tube, or 1 inch IPS pipe 1-1/4" Tube Quick disconnect allows for easy mounting or dismounting captive M6 clamp bolt, nut, and connector	Sensor housing compatible with: 25 mm pipe per BS1387, or 32 mm tube, or 1 inch IPS pipe 1-1/4" Tube Quick disconnect allows for easy mounting or dismounting captive M6 clamp bolt, nut, and connector	Sensor housing compatible with: 25 mm pipe per BS1387, or 32 mm tube, or 1 inch IPS pipe 1-1/4" Tube Quick disconnect allows for easy mounting or dismounting captive M6 clamp bolt, nut, and connector	Sensor housing compatible with: 25 mm pipe per BS1387, or 32 mm tube, or 1 inch IPS pipe 1-1/4" Tube Quick disconnect allows for easy mounting or dismounting captive M6 clamp bolt, nut, and connector
Tools required	10 mm wrench	10 mm wrench	10 mm wrench	10 mm wrench	10 mm wrench
Accessories	Pre-wired cable assembly (not included) Personality module (interface converter) (not included)	Pre-wired cable assembly (not included)	Pre-wired cable assemblies(not included)	Pre-wired cable assemblies(not included)	Pre-wired cable assembly (not included)

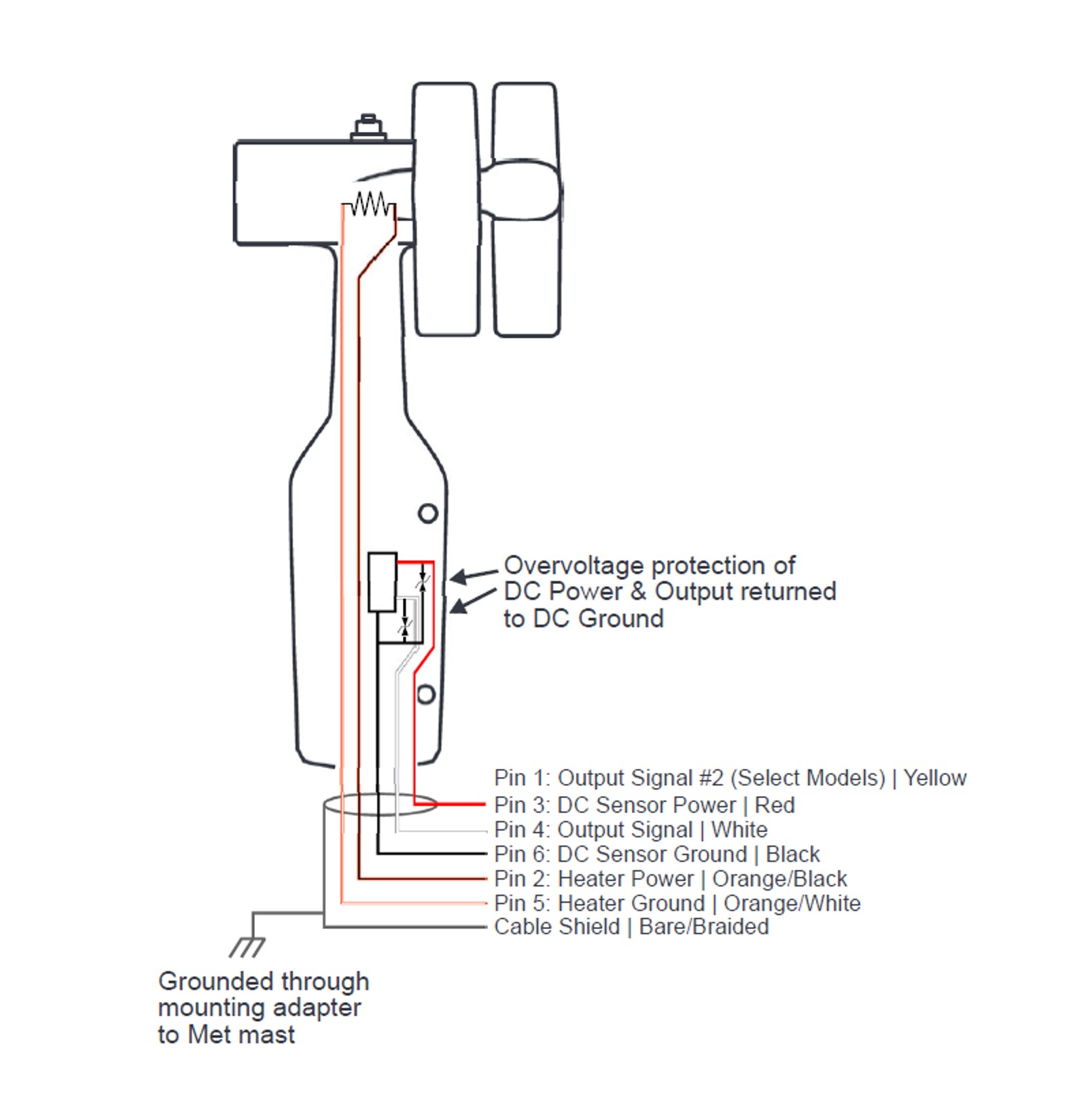

Wiring	Sensor plugs onto captive connector - see manual for wiring details	Sensor plugs onto captive connector - see manual for wiring details	Sensor plugs onto captive connector - see manual for wiring details	Sensor plugs onto captive connector - see manual for wiring details	Sensor plugs onto captive connector - see manual for wiring details
Environmental
Operating temperature range	-40°C to 60°C ( -40°F to 140°F)	-40 ° C to 60 ° C ( -40 ° F to 140 ° F)	-40 ° C to 50 ° C ( -40 ° F to 122 ° F) Ambient	-40 ° C to 50 ° C ( -40 ° F to 122 ° F)	-40°C to 60°C ( -40°F to 140°F)
Operating humidity range	0 to 100% RH	0 to 100% RH	0 to 100% RH	0 to 100% RH	0 to 100% RH
Other	IP55 per IEC 60529 and DIN40050-9 (Ingress Protection) MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion) IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion) IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature) IEC 60068-2-78 (Constant Humidity) IEC 60068-2-6, Test Fc (Sinusoidal Vibration) IEC 60068-2-64, Test Fh (Random Vibration) Packaging meets ISTA 1A (Drop Test)	IP55 per IEC 60529 and DIN40050-9 (Ingress Protection) MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion) IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion) IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature) IEC 60068-2-78 (Constant Humidity) IEC 60068-2-6, Test Fc (Sinusoidal Vibration) IEC 60068-2-64, Test Fh (Random Vibration) Packaging meets ISTA 1A (Drop Test)	IP55 per IEC 60529 and DIN40050-9 (Ingress Protection) MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion) IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion) IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature) IEC 60068-2-78 (Constant Humidity) IEC 60068-2-6, Test Fc (Sinusoidal Vibration) IEC 60068-2-64, Test Fh (Random Vibration) Packaging meets ISTA 1A (Drop Test)	IP55 per IEC 60529 and DIN40050-9 (Ingress Protection) MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion) IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion) IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature) IEC 60068-2-78 (Constant Humidity) IEC 60068-2-6, Test Fc (Sinusoidal Vibration) IEC 60068-2-64, Test Fh (Random Vibration) Packaging meets ISTA 1A (Drop Test)	IP55 per IEC 60529 and DIN40050-9 (Ingress Protection) MIL-STD-810F Method 509.4 (96 Hour Salt Fog Corrosion) IEC 60068-2-52, Severity 1 (28 Day Salt Fog Corrosion) IEC60068-2-38 Z/AD (Cyclic Humidity & Temperature) IEC 60068-2-78 (Constant Humidity) IEC 60068-2-6, Test Fc (Sinusoidal Vibration) IEC 60068-2-64, Test Fh (Random Vibration) Packaging meets ISTA 1A (Drop Test)
Physical
Connections	Quick release connector mount 300V rated insulation Outside diameter of cable = 8.89mm(0.35inches) braided shield overall two heater wires 20 AWG sensor wires: power, common, signals, 22 AWG	Quick release connector mount 600V rated insulation Outside diameter of cable = 8.89mm(0.35inches) braided shield overall two heater wires (20 AWG) three sensor wires: power, common, signal (22 AWG, shielded from heater power)	Quick release connector mount 600V rated insulation Outside diameter of cable = 8.89mm(0.35inches) braided shield overall two heater wires (20 AWG) three sensor wires: power, common, signal (22 AWG, shielded from heater power)	Quick release connector mount 300V rated insulation Outside diameter of cable = 8.89mm(0.35inches) braided shield overall two heater wires (20 AWG) four sensor wires: power, common, 2 signals (22 AWG)	Quick release connector mount 300V rated insulation Outside diameter of cable = 8.89mm(0.35inches) braided shield overall two heater wires (20 AWG) four sensor wires: power, common, 2 signals (22 AWG)
Weight	1.68 kg (3.71 lbs)	1.68 kg (3.71 lbs)	1.68 kg (3.71 lbs)	1.68 kg (3.71 lbs)	1.68 kg (3.71 lbs)
Dimensions	Overall height 247 mm (9.72 inches) Swept diameter: 150 mm (5.92") Body diameter: 58 mm (2.3")	Overall height 247 mm (9.72 inches) Swept diameter: 150 mm (5.92") Body diameter: 58 mm (2.3")	Overall height 247 mm (9.72 inches) Swept diameter: 150 mm (5.92") Body diameter: 58 mm (2.3")	Overall height 247 mm (9.72 inches) Swept diameter: 150 mm (5.92") Body diameter: 58 mm (2.3")	Overall height 247 mm (9.72 inches) Swept diameter: 150 mm (5.92") Body diameter: 58 mm (2.3")
Materials
Wing	Anodized Aluminum	Anodized Aluminum	Anodized Aluminum	Anodized Aluminum	Anodized Aluminum
Body	Zinc	Zinc	Zinc	Zinc	Zinc
Shaft	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Bearing	Double-shielded stainless steel ball bearings in a protective cartridge	Double-shielded stainless steel ball bearings in a protective cartridge	Double-shielded stainless steel ball bearings in a protective cartridge	Double-shielded stainless steel ball bearings in a protective cartridge	Double-shielded stainless steel ball bearings in a protective cartridge
