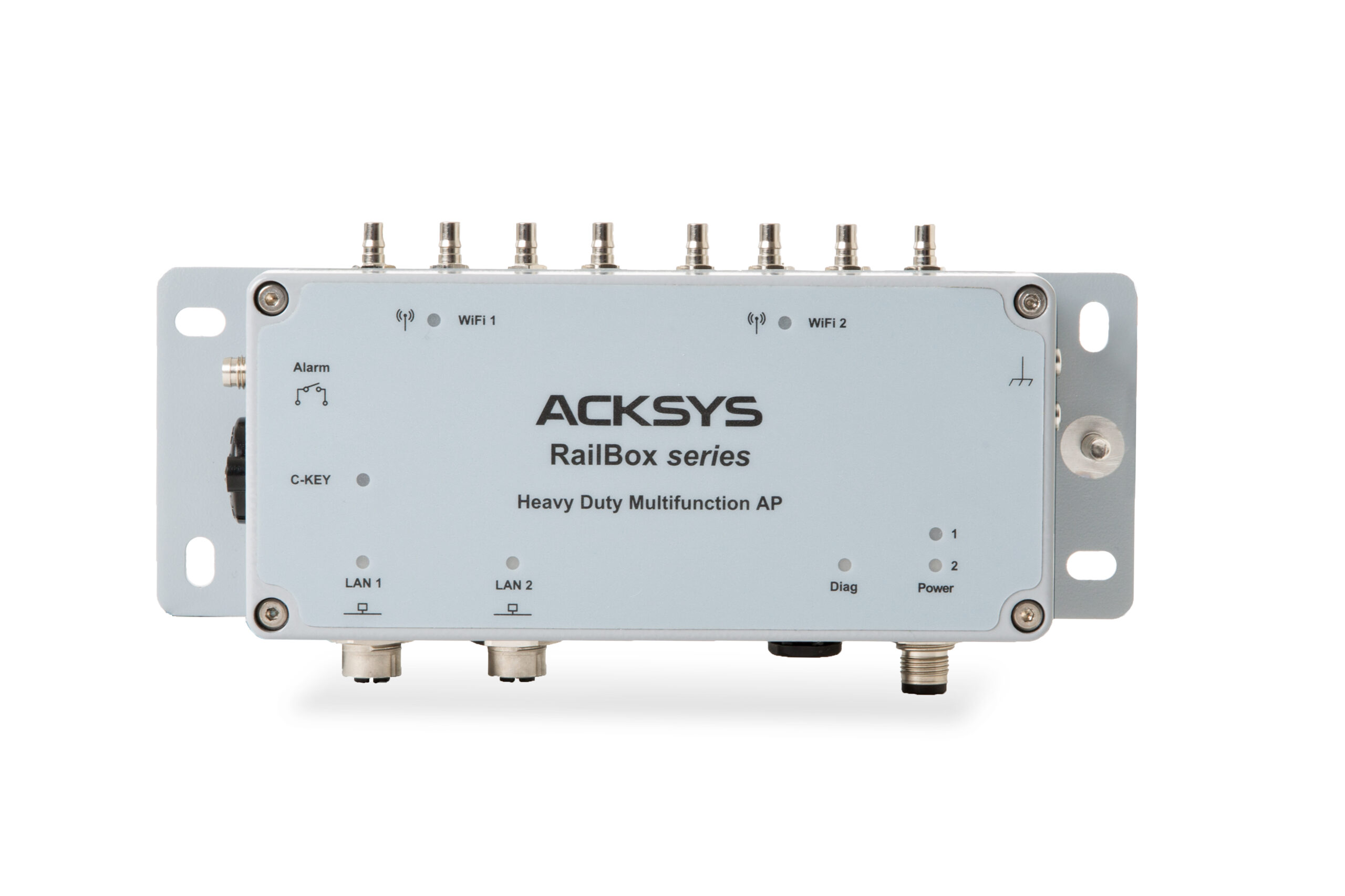

RailBox per Applicazioni Rugged Industriali, Automotive e su Rotaia (Treni, Metro e Tram)
Descrizione prodotto
Il RailBox è un dispositivo robusto progettato per applicazioni ferroviarie, per la metropolitana leggera ed i Tram.
Ideale anche per applicazioni Industriali per le quali affidabilità e robustezza sono fondamentali.
Cellular router for harsh environments and railway
- Single or dual radio WiFi and cellular :
> WiFi 802.11ax MIMO 4T4R dual band 2.4 GHz and 5GHz
> New WiFi 6E (6 GHz) version now available
> 4G LTE or 5G cellular radio with dual sim
- 2 Ethernet ports 2.5Gbps
- Multi-functions router, AP, client, mesh
- Inter-Carriage Link (ICL):
> SRCC automatic coupling
> Ethernet Bypass relay (optional)
- Access Point:
> Load balancing, band steering, Hotspot 2.0
> Cybersecurity : Rogue AP Detection, WPA3 personnal & enterprise
- Fast Roaming:
> CBB roaming with less than 0.1% packet loss
- NMS WaveManager
- EN50155, EN45545 certified router :
> Ultra-wide 24 to 110 VDC or PoE+ or PoE++ 802.3bt type 3 depending on model
> Dual insulated redundant power supply input
RailBox V2 is a rugged device designed for railway and light rail applications. It can be mounted on trains, subways, trams or in any equipment that requires robustness and high bandwidth for innovative services on the move.
RailBox V2 can be implemented by system integrators and rail vehicle manufacturers who are seeking to establish reliable, efficient and agile network for:
– Uninterrupted train-to-trackside communications (CBTC, CCTV, VoIP, preventive maintenance, PIS…)
– Train and carriage coupling to establish an end-to-end Ethernet and IP backbone
– Passenger services like onboard WiFi, videostreaming, entertainment, infotainment…
– High Speed data offload at the station or depot
The device relies on the multi-streams MU-MIMO and beamforming technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability.
It fulfills the most severe requirements in terms of operating environment: from -25°C to +70°C (extended : -40°C to +70°C), shock and vibration proof, protection against dust and water projections (IP66).
RailBox V2 is an evolution of Railbox, with exactly the same footprint (same dimensions and same connectors). This allows a smooth and cost-efficient upgrade of customers already equipped with Railbox products.
Available Part Numbers
RailBox/RRXB_V2
Single or dual WiFi Access Point or LTE-A or 5G gateway for railway and mobile application, shipped with a fixing plate (already mounted).
Accessories
|
|
NB: PoE version of RailBox can’t be powered by an external power supply cable
Documentazione
Specifiche tecniche
In evidenza
|
Ethernet interface |
2-port Gigabit Ethernet 100/1000/2500 auto-sensing, up to 5 Gbps link aggregation, water and vibration proof rapid connect 8-point M12 X-coded connectors (CAT-6A) plug & play mode & auto MDI/MDIX cross-over, optional Ethernet bypass that redirects the network traffic in case of device or power supply failure (for daisy chain topologies) |
|
Radio interfaces |
Radio 1: none or WiFi Radio 2: none or WiFi or cellular |
|
Security |
Firewall, DoS, https, MAC filtering, WPA/WPA2/WPA3-Personal & Enterprise (IEEE 802.1X/RADIUS), tunnels L2 (GRE), VPN (OpenVPN, IPsec), SNMP V3, Rogue AP detector, File system integrity monitor, Strong password policy, Management of opened ports and services |
|
WiFi Modes |
AP, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS |
|
WiFi Services |
Hot Spot 2.0, Wireless Load Balancing (load balancing, band steering, client roaming control, association control per SSID) |
|
Cellular Services |
Dynamic DNS, Auto APN, Switch SIM, Multi APN |
|
ACKSYS enhanced features |
Connect Before Break, Smart Redundant Carriage Coupling |
|
Ethernet networking |
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay, IPv6 compliant |
|
Ethernet routing |
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router, carriage coupling system (SRCC) |
|
Administration |
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software, save / restore configuration key (C-Key) |
|
LEDs Signaling |
Radio: quality, activity and status | Ethernet: link 100/1000/2500, activity | Power: on-off |
|
Alarms & Inputs |
A 3-pin Waterproof M8 connector with: - one solid state relay output warning (with configurable action), 1 Form A, 60VDC 80mA max - one input for external device control 24VDC max |
|
Power supply |
Dual insulated redundant input (1500V insulation, M12 connectors 4-pole A-coded) 24 to 110 VDC (EN50155 nominal), with ground lug. PoE+ or PoE++ 802.3bt type 3 model with ground lug also available. |
|
Consumption |
26W typical power consumption (dual radio), 30W max |
|
Dimensions & weight |
Compact shockproof rugged aluminium enclosure, (L: 80 x l: 175 x h: 57 mm), 900g Removable fixing plate: 4-point fixing plate with ground lug (L: 80 x l: 225 x h: 4 mm), 200g |
|
Standards and certifications |
CE (RED) Safety : EN 62368-1:2014+A11, EN62311 EMC : EN 301 489 [-1], [-17] Radio : EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS) EMC : EN 50155, EN 50121-3-2 Environmental : • Shocks and vibration : EN 61373 (CAT 1 CLASS B) • Climatic : EN60068-2 [-1, -2, -30] • Fire/smoke : EN45545-2 (HL3), NF F16-101 (M1F1), NFPA 130 |
|
Environment |
Operating : -25°C to +70°C (HR 0-99%) Extended : -40°C to +70°C / +85°C for 10 mn, EN 50155 class TX Storage: -40°C to +80°C IP66 seal rating, GORE ® protective vent (dehumidifying membrane) |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
